Micro-scale 3D Inkjet Printer
Advanced 3D algorithms and multi-axis high-precision operationcontrol platforms are perfectly combined with industrial gradeself-developed micro ink supply and observation systems.Promote the application of IJP technology in the field of industri-al new surface treatment.
High precision visual positioning technology

Precise droplets measurement technology

3D contour intelligent scanning technology

Multifunctional ink circulating supply technology

3D forming film thickness control technology

Online AOI defect detection technology

Main Functions

  • Micro-scale 3D inkjet printer is a equipment which uses multiple printheads to print low viscosity liquid materials onto the surfaceof the product substrate according to the predetermined 2D/3D drawing.

  • On the basis of UP lInkJet Printing] technology, the printer is equipped with multi-head printing system, multifunctional inkcirculating supply system, high precision motion control system, 3D contour scanning and slicing functions, and a follow-up curing

  • The printer is mainly used for the printing of 3D structural components in the 3C industry, and can be extended to industries suchas photovoltaics, lithium batteries, semiconductors, and flat panel displays.

Technical Parameter
Function
Product size
Motion accuracy
Printing accuracy
Ink droplet volume
Number of printheads
Printing speed
Printing resolution
Film thickness uniformity
Parameters
≤300*300mm
≤±3um
±10um
3~15pl(optional)
1~8
≤1000mm/s
1200*1200dpi
≤+5%
3D Large-volume Measurement and Inspection Platform-Zenisight
Supported by 3D measurement solution + smart Al model +entire process data tool chain, achieved efficient appearanceinspection and high-precision 3D measurement of largeobjects in one stop. Platform-based hardware and softwaredesign enables rapid deployment
Universal Platform Design

Modular hardware and software design. Quickly adapt to actual requirements

Automatic Path Planning

Offline job editing Automatic generation of detection path

Measurement and Inspection

2D+3D fusion solutionHigh precision measurement+Al inspection

Rapid Delivery

Turnkey solutionGreatly improve thedeployment speed

Main Functions

  • VMR

  • HySmart™ Al Inspection

  • TestReal®3D Measurement

  • Multi-specification Sensor Support

Application

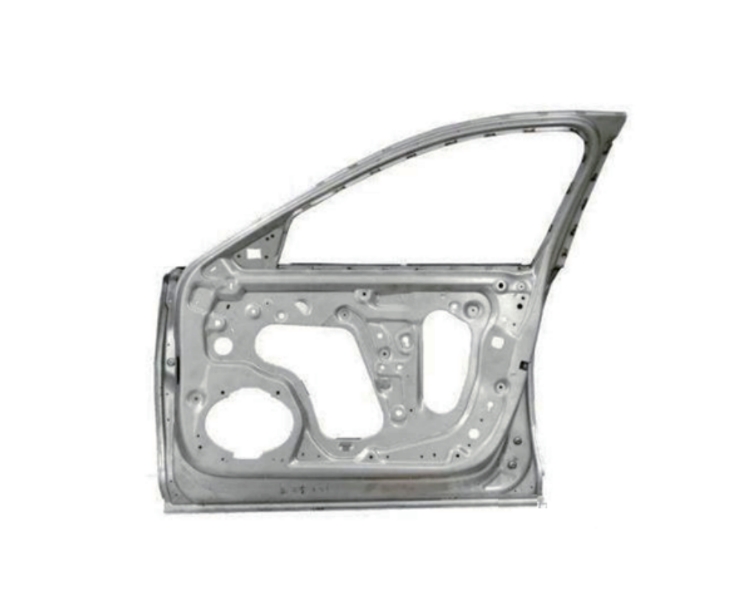

  • Stamping Parts

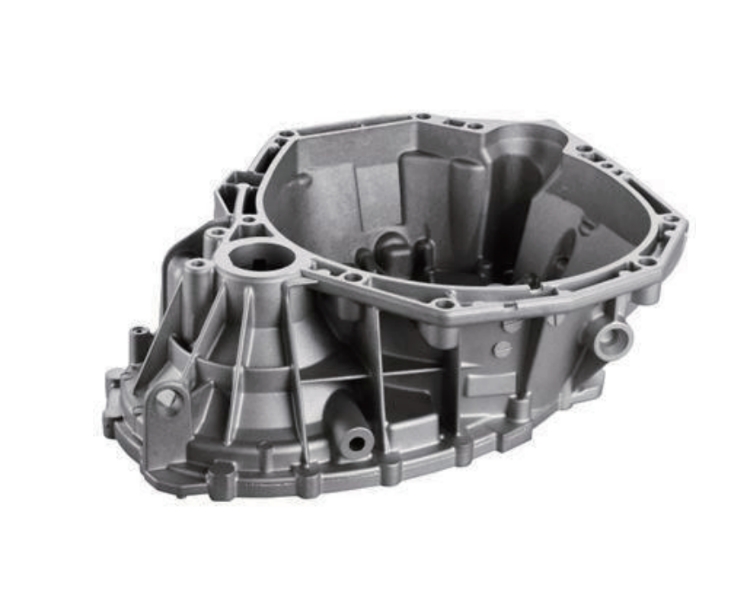

  • Die Casting Parts

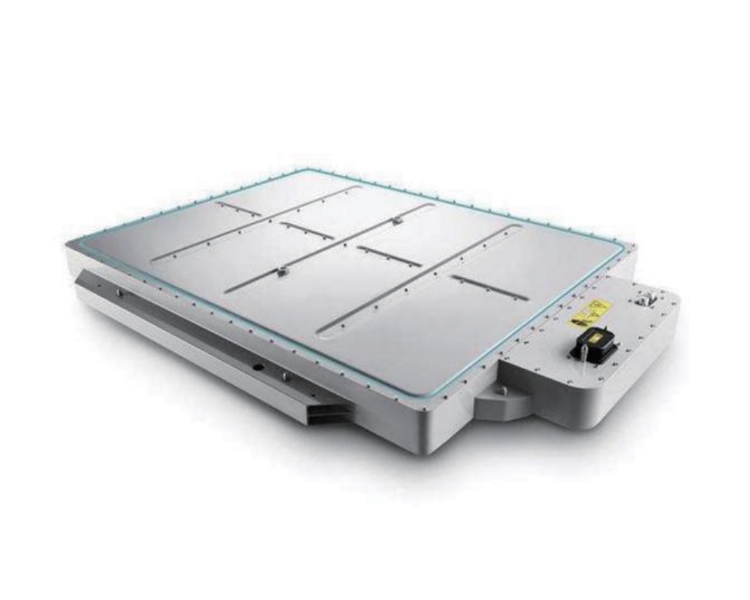

  • Battery Pack

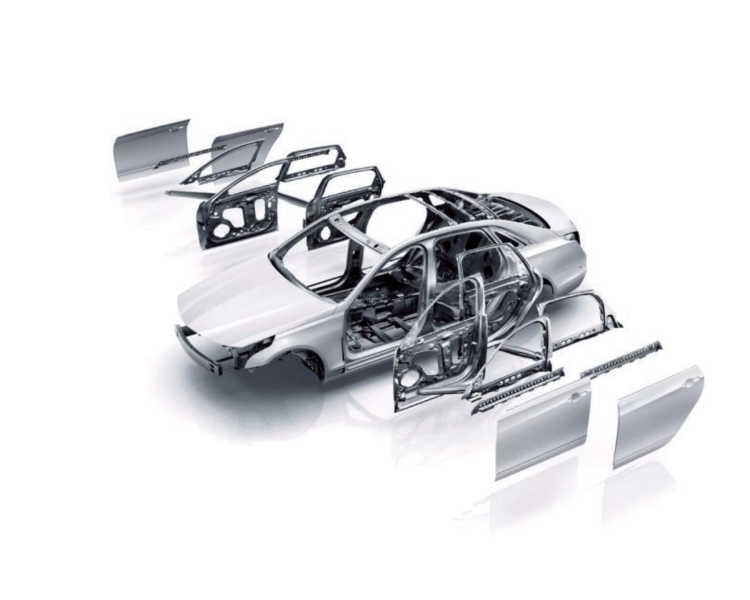

  • Entire Automobile

Technical Parameter
Function
Motion Module
2D Optics System
3D Optics System
VMR
Al Algorithm
3D Measurement Algorithm
Operation
Parameters
Six-axis robot + rotatable platform
5M/12M(optional)
Z-Eye/Z-Eye proloptional
Simulation of the whole process
Data-centric Al platform
Complete & easy-to-use 3D algorithm platform
Automatic lines/Manual machine
Benefit
Multi-axis cooperative motion system to reduce space dead Angle
Equipped with the intelligent optical calibration system. Achieve imaging quantification consistency
Accuracy is up to 0.02mm.The Z-Eye pro is optional for target-free 3D measurement
Offline job editing, Automatic generation of detection path
High detection rate and low escape, Efficient delivery of process data tool chain
Multi-specification sensor support, 100% GD&T measurement, digital analog comparison, error compensation
Flexible integrated application
5-axis Linkage 3D Dispensing
Leverage advanced spatial 5-axis 3D calibration techniques,industrial CAM simulation algorithms, and 5-axis coordinatedprecision control platforms to achieve high-speed precisiondispensing on complex curved surfaces at multiple angles.
全
Universal 3D axis calibration
真
True 5-axis coordinated control
实
Real-time 3D trajectory correction
准
Precise trajectory look-ahead
闭
Closed-loop 3D gluepath detection
Technical Features

  • 1.HyFluid glue dispensing software, one-click calibration, calibration time <10min

  • 2.5-axis RTCP control technology, full-range axis calibration accuracy ±0.02mm

  • 3.Glue dispensing trajectory STEP format simulation generation, generation time <50s

  • 4.Real-time XYZUV point cloud information correction of glue dispensing path, correction accuracy 0.01mm

  • 5.Trajectory look-ahead algorithm control of glue dispensing motion, reducing glue defects, improving dispensing efficiency by 15%

Application

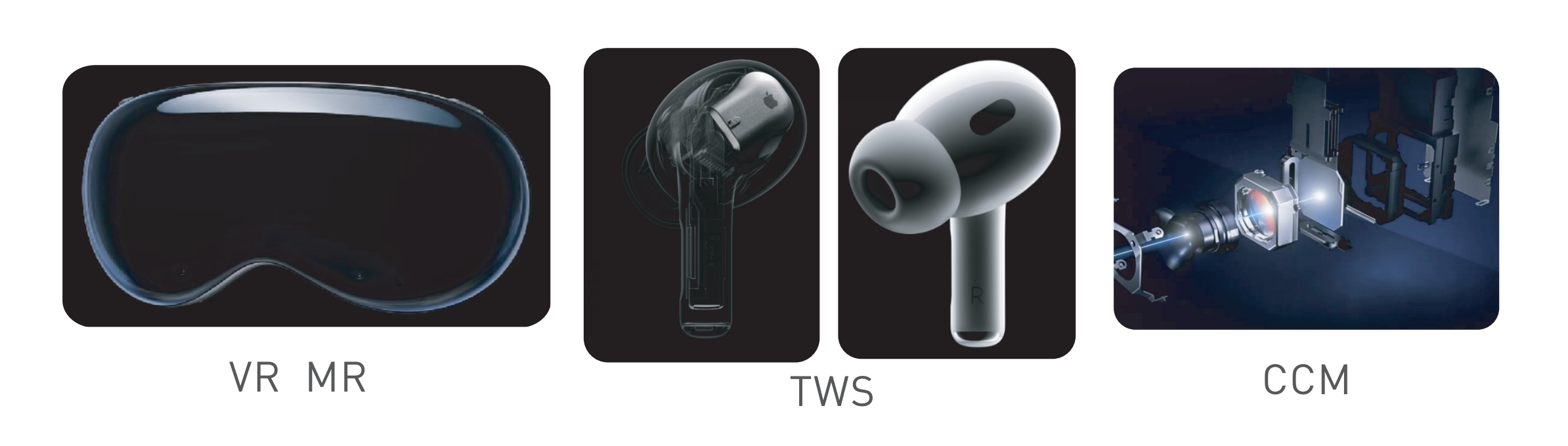

  • Suitable for complex curved surface and multi-station glue dispensing applications such as VR, MR, CCM, TWS, screens, etc.Available to replace 3-axis, 4-axis glue dispensing equipment, improving yield.

Values

  • Realize complex glue dispensing trajectory generation

  • Realize how to achieve complex trajectories

  • Solve how to achieve closed-loop control of complex glue dispensing trajectories
